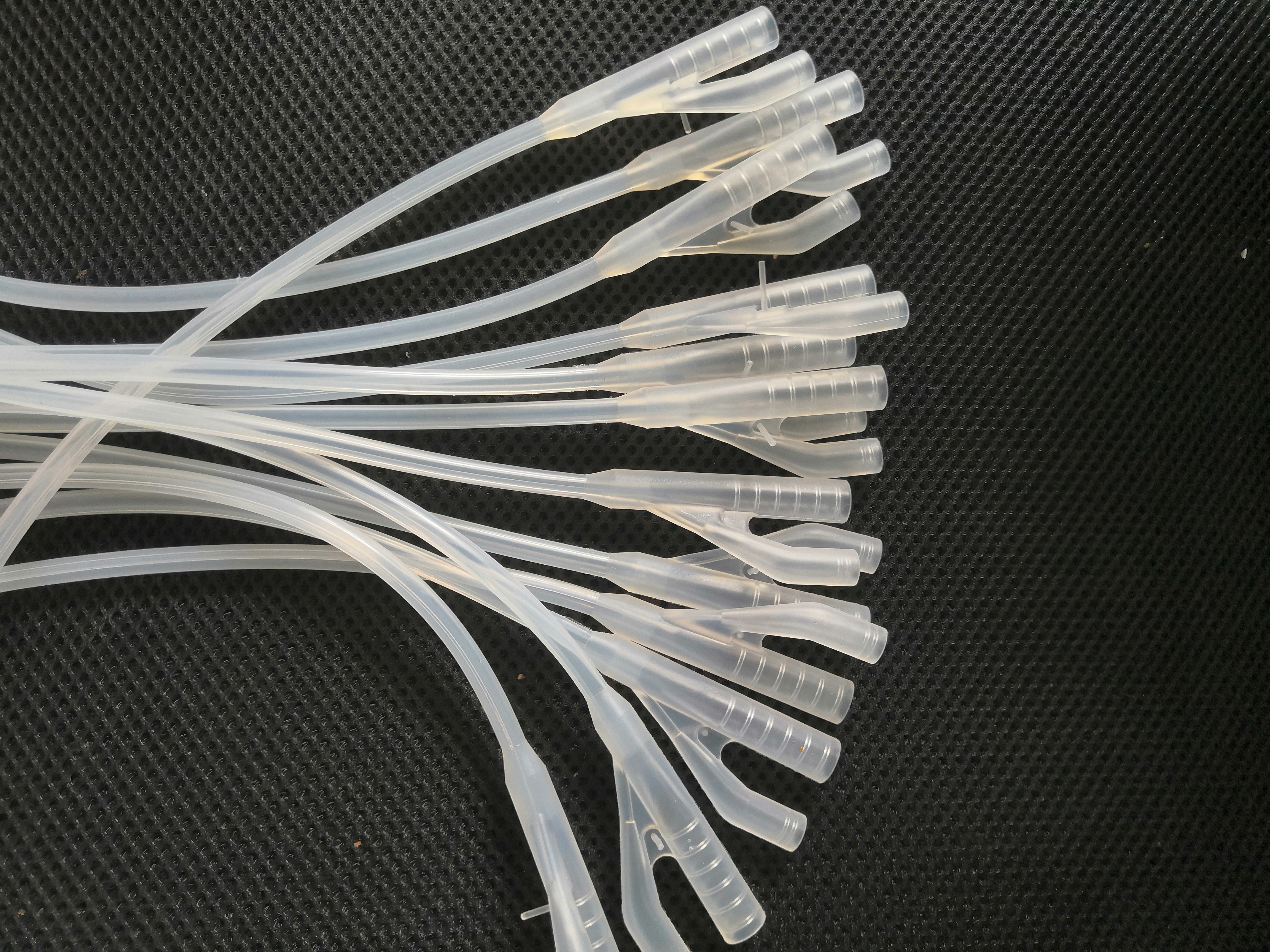

100 ton Fast Servo Motor Vertical Silicone Injection Molding Machine For Medical Foley Catheter F6~F26 Urethral catheter
The reliable and stable operation of TYM machine make your production more smothly.
The humanized design and spacious work station improve your efficiency.
Static and dynamic mixer to mix the material and color more thoroughly.
The servo motor system can quick response , high recision and save energy .
Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold, we mastered the core technology, the quality is excellent!
The main feature of the vertical LSR molding machine:
* Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster and steadier.
* Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
* Meet the requirements on multi-station production
* High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.
Mechanical Characteristics for TYM-L5058-2
| TYM-L5058 Vertical LSR injection molding machine |
| Injection Unit |
| Shot Volume | 165 g |
| Injection Rate | 30 g/s |
| Injection Pressure | 19.6 T |
| Clamping Unit |
| Clamping Force | 130 T |
| Opening Stroke | 250-550 mm |
| Tie-Bars Pace | 500*580 mm |
| Ejection Force | 7.8 T |
| Ejection Stroke | 150 mm |
| Others |
| Pump Pressure | 21 Mpa |
| Motor Power | 12.1 KW |
| Heater Power | 9 KW |
| Mould Orientation Ring Diameter | Φ 100 mm |
| Machine Weight | 6 T |
| Machine Dimension | 2.5*1.6*3.6 m |
About Moldshop
TYM is China's first leading brand providing a one-stop complete solution of "raw material + liquid silicone injection molding machine + mold + technical support + personnel training + finished products” , every client is able to obtain various professional solutions here.
Application:
TYM injection molding machine is suitable for multi-purpose silicone rubber molding.
About Company
Specialized in liquid silicone 17 years
TYM was established in 2002, registered capital is 189.32 million,33000㎡ manufacture base, two wholly owned subsidiaries
More than 60 patents
12 invention patents, it is rated as a national high-tech enterprise in 2013
Industry leading
China's first leading brand providing a complete solution of "Liquid Injection Molding Machine+ mold + process + personnel training”
Mature experience
Cooperated with the four major organic silicon producers in the world for many years and has rich experience for liquid silicone application in various industries
Industry trust brand
Serve customers in more than 50 countries and regions at home and abroad in many fields, have a deep understanding of product technology, and can provide more professional services
